Pinout information

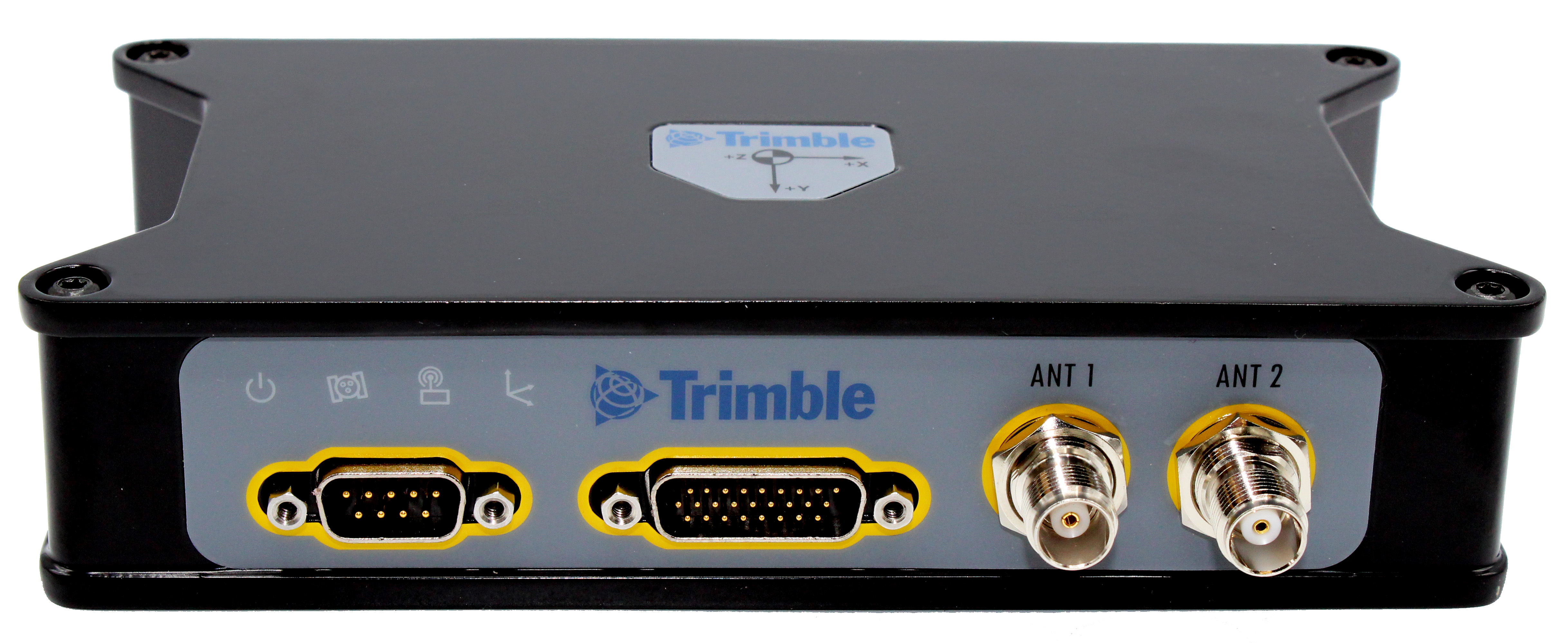

Applicable receivers: BX992

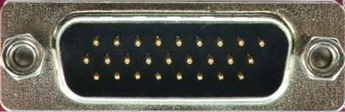

DB26 pinout connector
|
Pin |
Usage |
|---|---|
|
1 |
Not connected |
|
2 |
Clear to send (CTS) input for COM Port 2 |
|
3 |
Event 0 input |
|
4 |
Event 1 input |
|
5 |
Not connected |
|
6 |
Common ground |
|
7 |
Transmit data for COM Port 1 |
|
8 |
Receiver data for COM Port 1 |
|
9 |
USB + |
|
10 |
Ethernet ground (ET GND RJ45 Pin 4) |
|
11 |
Ready to send (RTS) output for COM Port 2 |
|
12 |
Transmit data for COM Port 2 |
|
13 |
Ethernet spare (ET GND RJ45 Pin 5) |
|
14 |
Ethernet spare (ET GND RJ45 Pin 8) |
|
15 |
USB ID |
|
16 |
Ethernet receive data- (RD- RJ45 Pin 6) |
|
17 |
Ethernet transmit data- (TD- RJ45 Pin 2) |
|
18 |
USB D- |
|
19 |
USB Power |
|
20 |
1PPS |
|
21 |
Receive data for COM Port 2 |
|
22 |
Ethernet ground (ET GND RJ45 Pin 7) |
|
23 |
Common ground |
|
24 |
DC power in, 9–28 V DC (Ground is Shell) |
|
25 |
Ethernet receive data+ (RD+ RJ45 Pin 3) |
|
26 |
Ethernet transmit data+ (TD+ RJ45 Pin 1) |
DB9 pinout connector
NOTE – The DB9 port on the receiver is not mutliplexed to output RS-232 OR CAN. This port can only output CAN.
