Pinout information

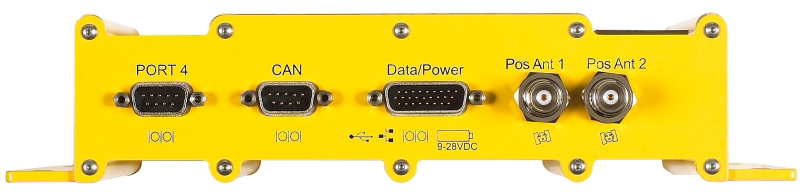

Applicable receivers: BX982
Port 4 pinout
|
Pin |
Usage |
|---|---|
|
1 |
Not connected |
|
2 |
RS-232 Rx data in |
|
3 |
RS-232 Tx data out |
|
4 |
Not connected |
|
5 |
GND |
|
6 |
Not connected |
|
7 |
Not connected |
|
8 |
Not connected |
|
9 |
Not connected |
CAN pinout
|
Pin |
Usage |
|---|---|
|
1 |
Not connected |
|
2 |
CAN- |
|
3 |
Not connected |
|
4 |
Not connected |
|
5 |
GND |
|
6 |
Not connected |
|
7 |
CAN+ |
|
8 |
Not connected |
|
9 |
Not connected |
Data/power pinout
|
Pin |
Usage |
|---|---|
|
1 |
Not connected |
|
2 |
Not connected |
|
3 |
Not connected |
|
4 |
Not connected |
|
5 |
Not connected |
|
6 |
GND |
|
7 |
RS-232 Port 2 transmit data (TX) |
|
8 |
RS-232 Port 2 receive data (RX) |
|
9 |
USB + |
|
10 |
Ethernet ground (ET_GND RJ45 Pin 4) |
|
11 |
Not connected |
|
12 |
RS-232 Port 1 transmit data (TX) |
|
13 |
Ethernet ground (GND RH45 Pin 5) |
|
14 |
Ethernet ground (GND RH45 Pin 8) |
|
15 |
USB ID |
|
16 |
Ethernet receive data- (RD-RJ45 Pin 6) |
|
17 |
Ethernet transmit data- (TD-RJ45 Pin 2) |
|
18 |
USB- |
|
19 |
USB power |
|
20 |
1PPS |
|
21 |
RS-232 Port 1 receive data (RX) |
|
22 |
Ethernet ground (GNSD RJ45 Pin 7) |
|
23 |
GND |
|
24 |
DC power in, 9 – 28 V DC |
|
25 |
Ethernet receive data+ (RD+ RJ45 Pin 3) |
|
26 |
Ethernet transmit data+ (TD+ RJ45 Pin 1) |
