Drawings

Applicable receivers: BX982

The following drawings show the dimensions of the receiver. Refer to these drawings if you need to build mounting brackets and housings for the receiver.

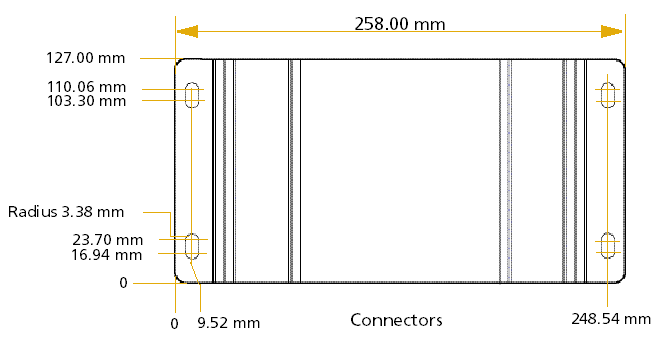

Plan view

Edge view
