Drawings

Applicable receivers:  BD990 | BD992 | BD992-INS

If you require a 3D CAD model of the module, please send a request to GNSSOEMSupport@trimble.com.

Key dimensions on the BD990, BD992, and BD992-INS

Board dimensions are similar between the BD990 and the BD992/BD992-INS. The key difference between the three receivers is the lack of a second MMCX receptacle on the BD990.

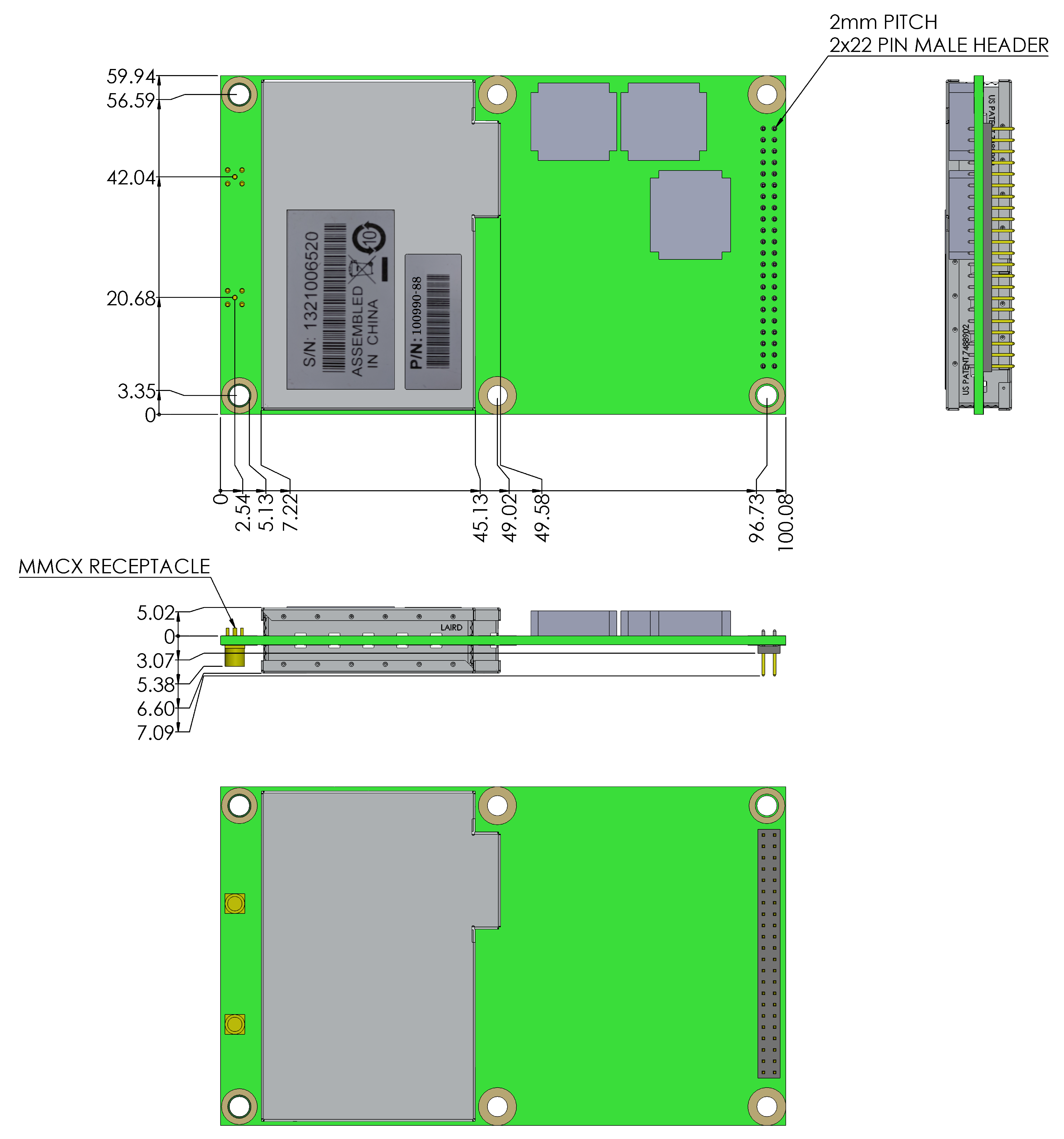

Below is an overview of key dimensions on the BD990/BD992/BD992-INS.

BD992-INS Center of Navigation

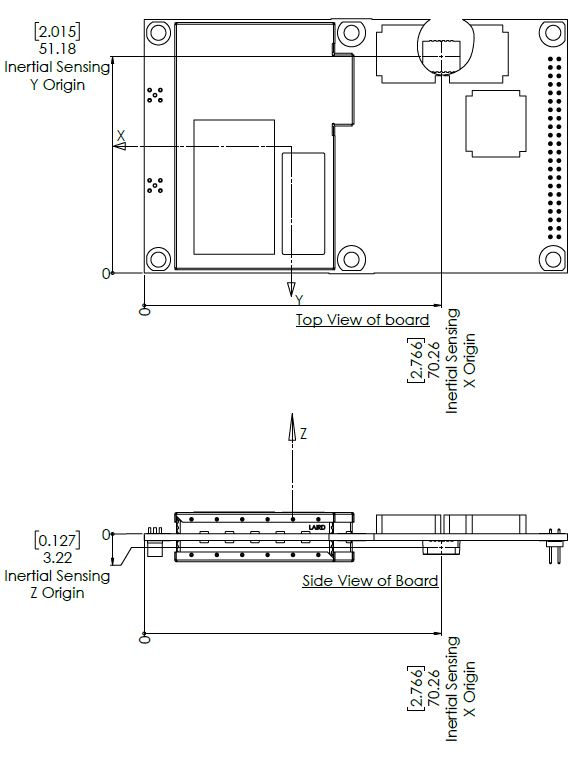

The following figure details the location of the center of navigation of the BD992-INS board. To correctly configure the inertial system, all GNSS Lever arm measurements must be taken with respect to the BD992-INS center of navigation.
