Drawings
Applicable receivers: BD982

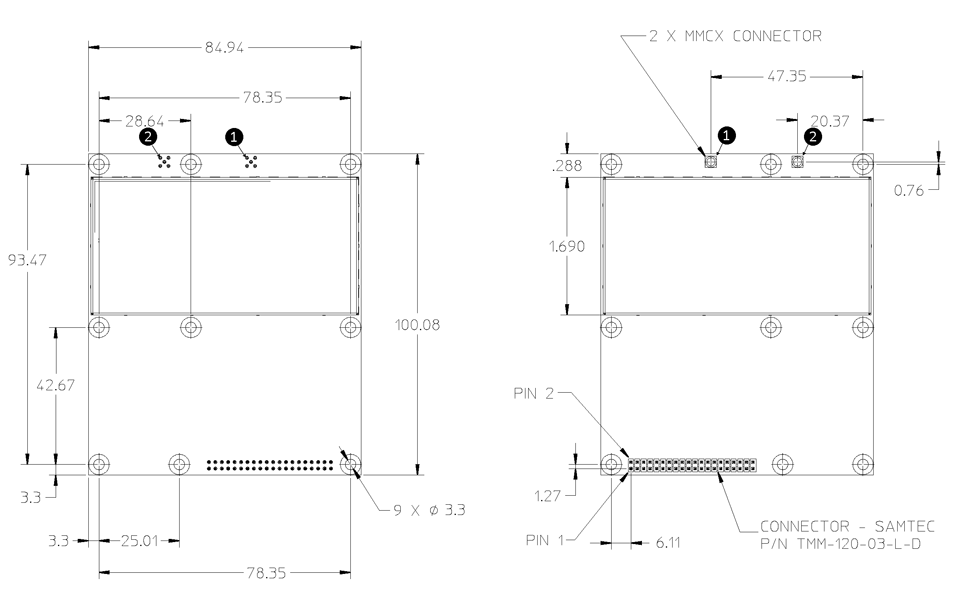

The following drawings show the dimensions of the BD982 receiver module. Refer to these drawings if you need to build mounting brackets and housings for the receiver.
Dimensions are shown in millimeters (mm).
Plan view
1 Primary/position antenna
2 Secondary/vector antenna
Edge view
