Drawings

Applicable receivers: BD970

The following drawings show the dimensions of the BD970 receiver module. Refer to these drawings if you need to build mounting brackets and housings for the receiver.

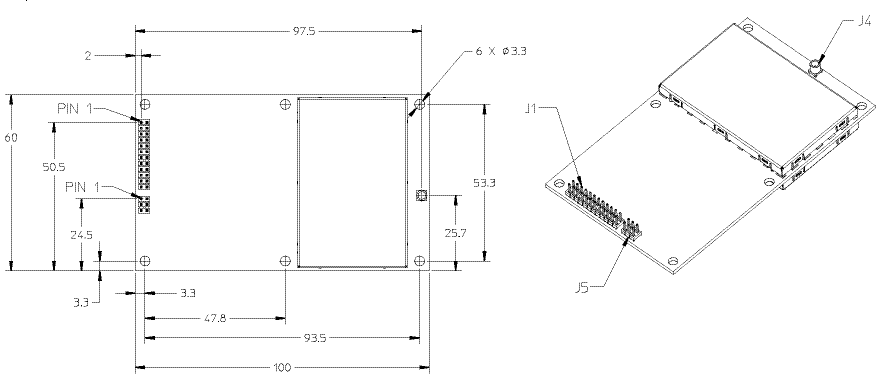

Plan view

Edge view
