Drawings

Applicable receivers: BD9250

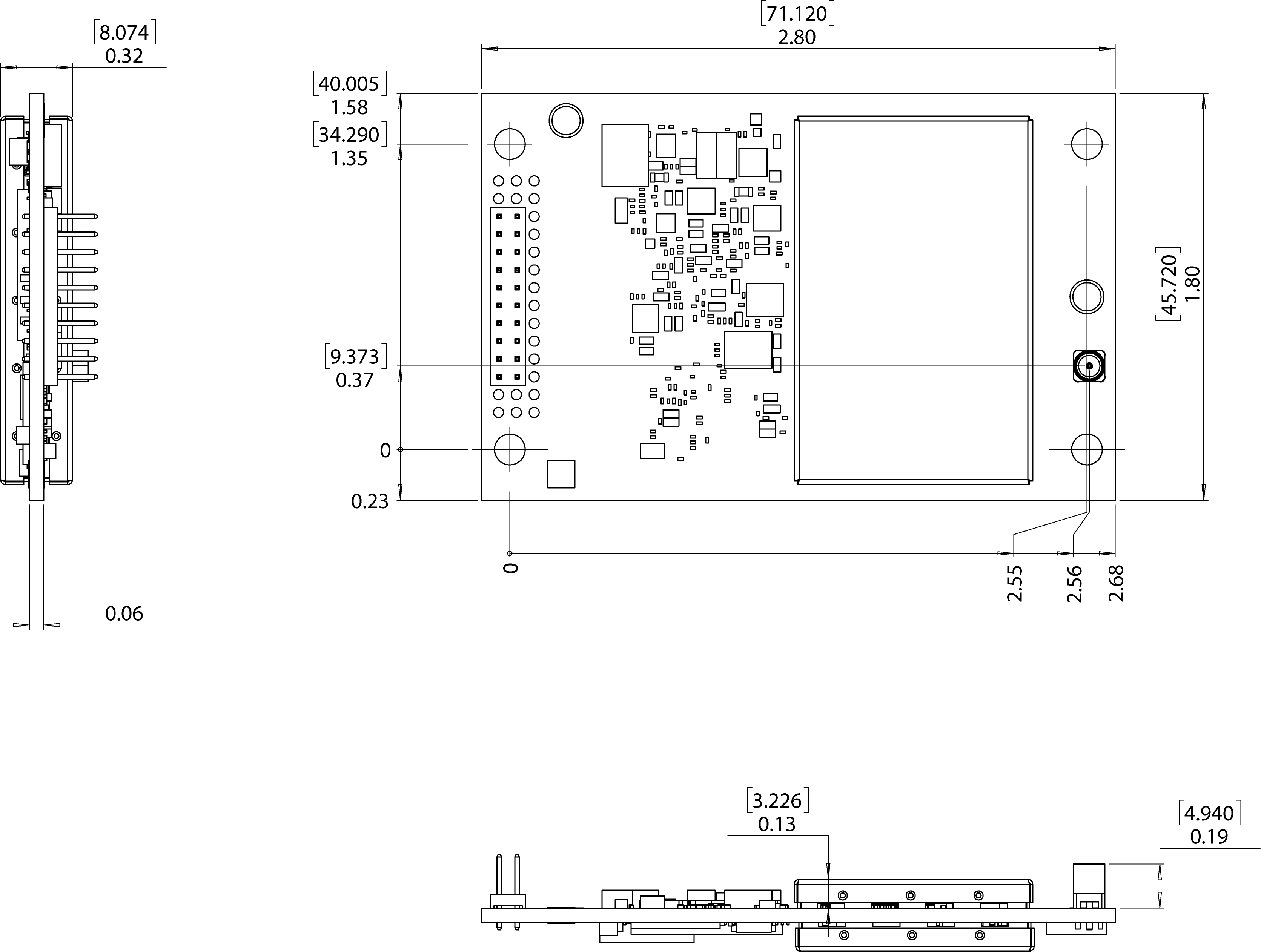

Below is an overview of the key dimensions of the BD9250 receiver module. If you require a 3D CAD model of the module, please send a request to GNSSOEMSupport@trimble.com.

NOTE – Dimensions are in inches with millimeters shown in brackets.

NOTE – In the above drawing, pin 1 is located top left and pin 28 is located bottom right of the 28-pin connector.
