Drawings
Applicable receivers:

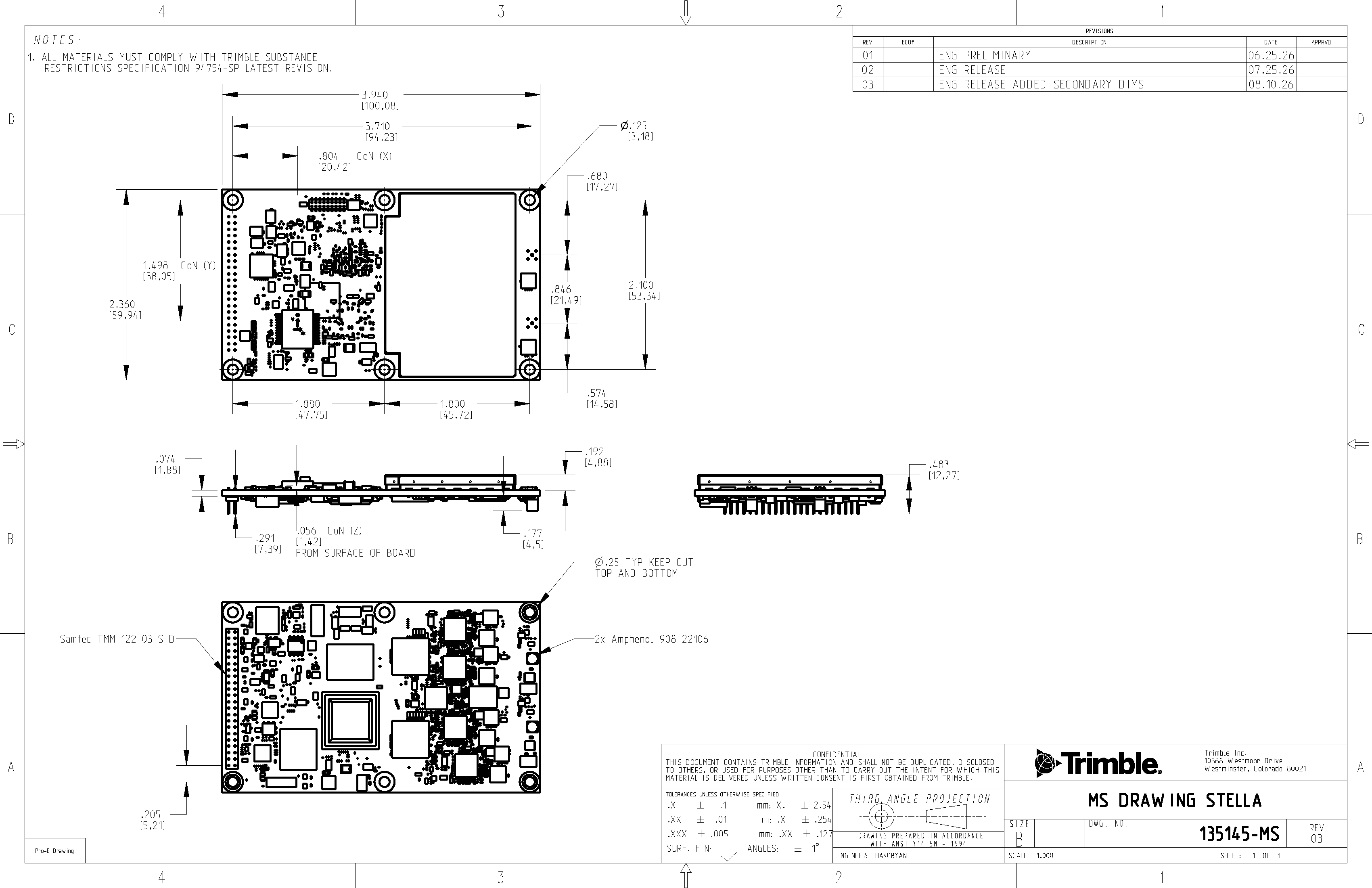

Key dimensions of the receiver module are shown here. This drawing is also available as a PDF file for download.
If you require a 3D CAD model of the module, please send a request to GNSSOEMSupport@trimble.com.
Board dimensions are similar between the BD1090 and the BD1092 / BD1092i. The key difference between the three receivers is the lack of a second MMCX receptacle on the BD1090.
The following figure details the location of the center of navigation of the BD1092i board. To correctly configure the inertial system, all GNSS Lever arm measurements must be taken with respect to the BD1092i center of navigation.
